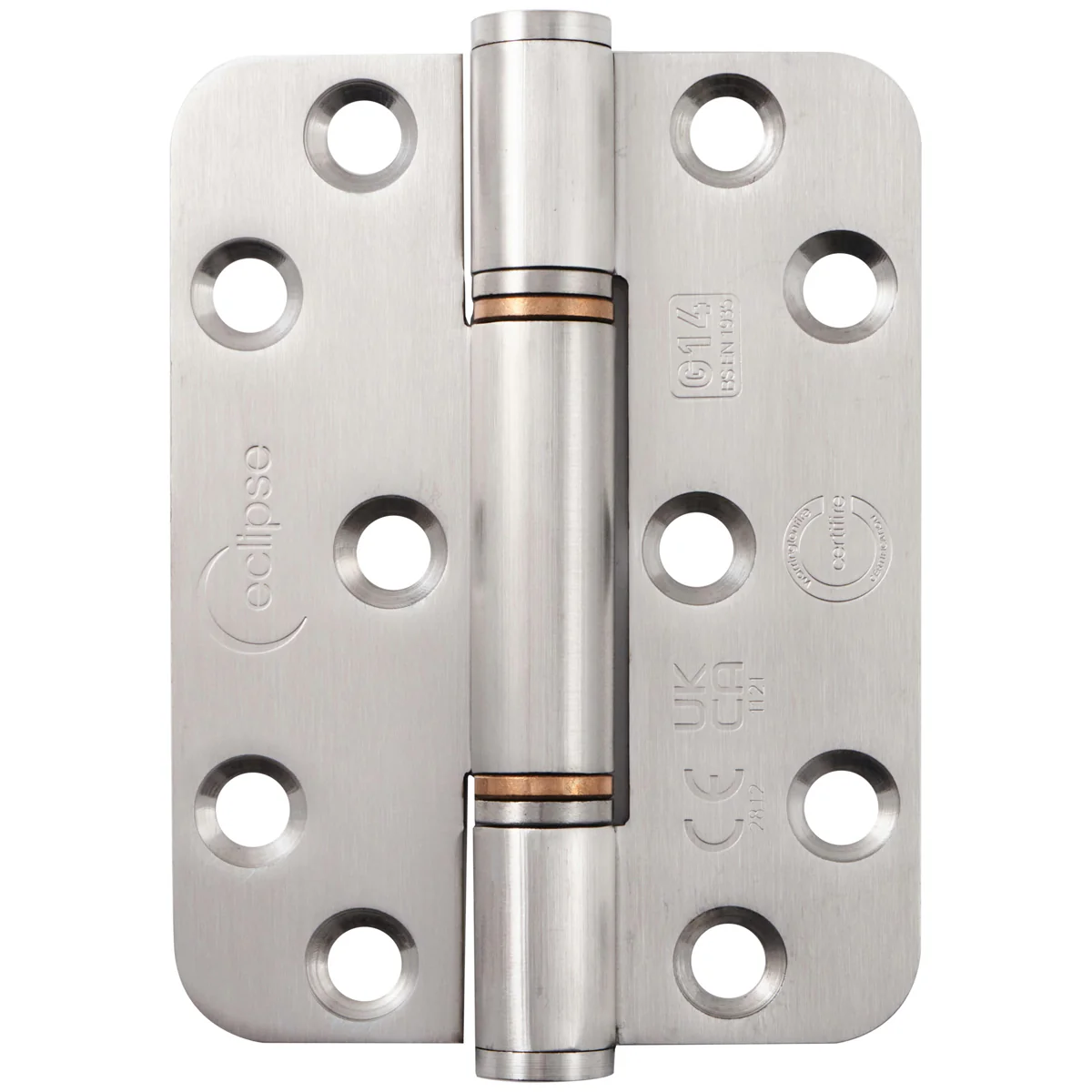

Eclipse Thrust Bearing Hinge — Grade 14 | 102x76x3mm | Radius Corners | Satin Stainless Steel | Pack of 3

A premium Grade 14 thrust bearing hinge from the Eclipse range, finished in Satin Stainless Steel and manufactured with 10mm radius corners. Sold as a pack of 3 — the trade-preferred quantity for a complete single-door installation. Manufactured from SUS 201 stainless steel and engineered for the most demanding heavy-duty timber and steel fire doors up to 160kg.

Tested to 200,000 cycles to BS EN 1935 Grade 14, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

• Grade 14 performance — rated for doors up to 160kg total mass
• Thrust bearing mechanism for smooth, heavy-load operation
• 10mm radius corners
• SUS 201 stainless steel construction
• Satin Stainless Steel finish
• Size: 102 x 76 x 3mm
• 12-gauge countersunk fixing holes
• Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
• Cycle tested: 200,000 cycles (BS EN 1935 Grade 14)
• Certifications: CE 2812 | UKCA 1121 | Certifire CF336
• Supplied with 12 × 1½" Pozi Drive threaded screws
• Sold as a pack of 3 hinges

Specifications

• SKU: HI1252O9
• Size: 102 x 76 x 3mm
• Material: SUS 201 Stainless Steel
• Finish: Satin Stainless Steel (SSS)
• Corner Style: 10mm radius
• Grade: BS EN 1935 Grade 14
• Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
• Pack Quantity: 3 hinges
• Fixings: 12 × 1½" Pozi Drive screws included

Also available as a pair (SKU: HIF234B). Browse the full Eclipse range or explore all hinges at Hart Wholesale.
