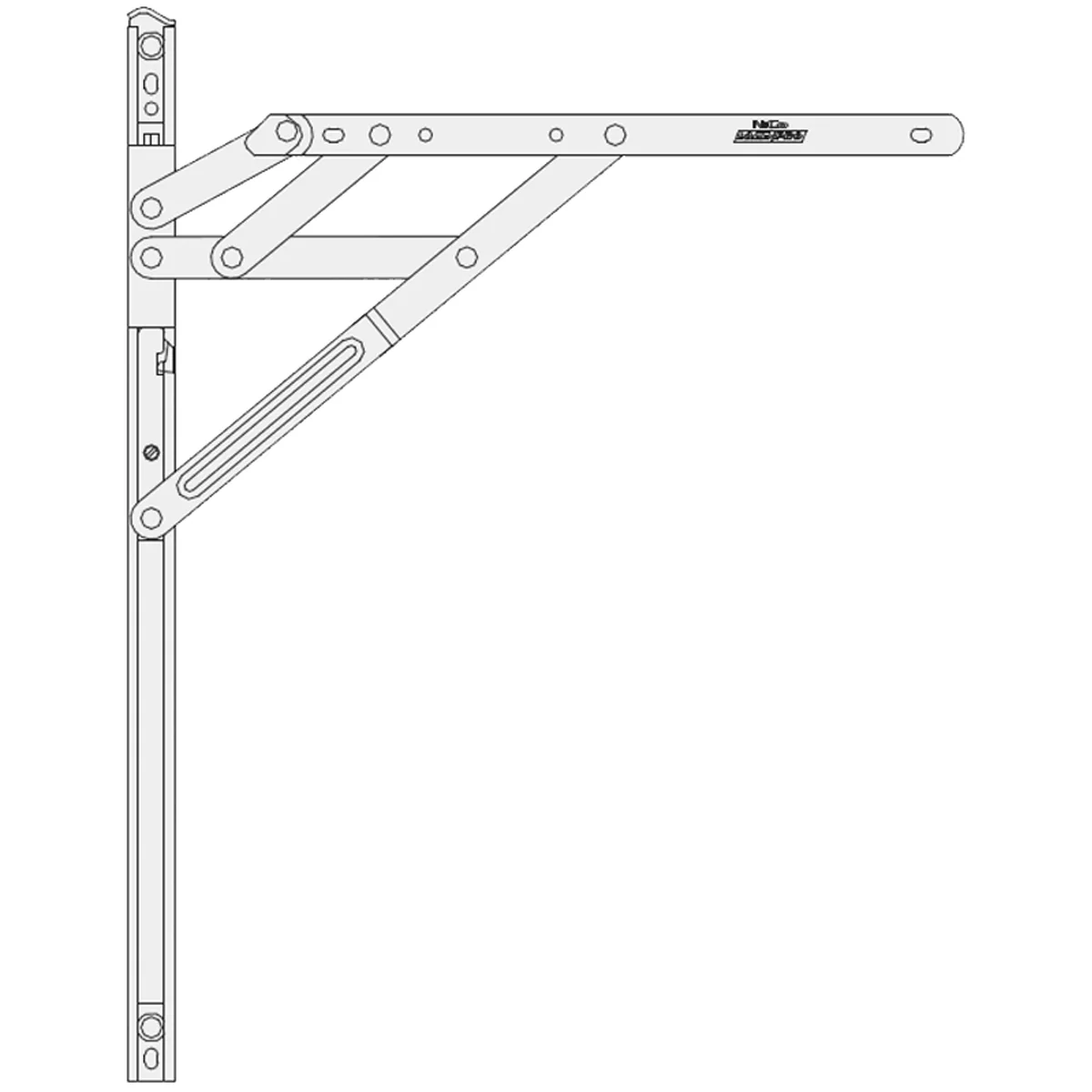

The Atlas Heavy Duty Friction Hinge is a premium top hung hinge engineered for larger, heavier windows. With a maximum vent weight of 60kg and a 600mm (24") arm, it delivers exceptional load-bearing performance with long-term reliability.

Features & Benefits

• Carries heavier weights than standard hinges — up to 60kg for Top Hung
• Stainless steel riveted nose cap for strength and reliability
• 3-stage counterbore process improves resistance to wear
• Glass reinforced nylon slide eliminates breaking and wear
• 4.8mm stainless steel rivets improve load carrying
• Increased bar thickness and additional fixing holes for maximum stability
• Brass adjustment screw provides adjustable friction
• 10 year mechanical guarantee

Testing & Technical

• Made in Britain to an ISO 9001 Quality System
• Successfully security tested with Nico Xtra Bolts as a critical component within PAS 24:2022
• Secured By Design Approved — Police Preferred Specification
• Cycle tested within BS EN 6375 Pt 2 (Resistance to repeated opening and closing)
• Weather tested within BS EN 6375 Pt 1 (Air, wind and water testing)
• Corrosion tested to BS EN 1670 Grade 5 — 480 hours
• Endurance tested to 3× the British Standard maximum load carrying requirement

Technical Data — 14mm Range (600mm / 24")

• Type & Style: Top Hung (T/H) Standard
• Max Vent Height: 1500mm
• Max Vent Weight: 60kg
• Max Opening Angle: 38°
